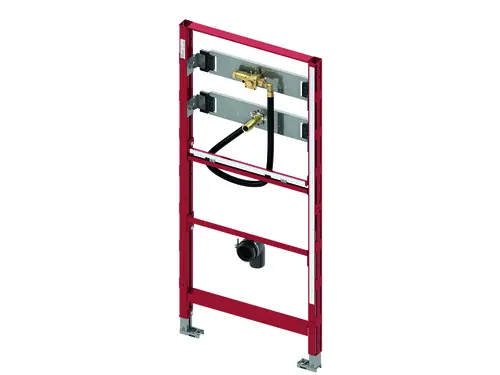

TECEprofil urinal module with TECE flushing cistern U1, installation height 1120mm

• TECEprofil
• 1x urinal module with TECE flush valve housing U1

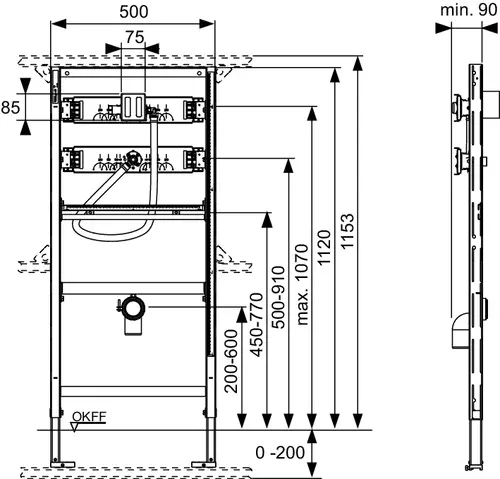

• Installation height 1120 mm
• For mounting manual and electronic actuation systems
• For attachment to TECEprofil profile pipes
• For installation in metal or wooden stud walls and as a pre-wall or corner module

Completely pre-assembled unit, consisting of:

• TECE urinal flush valve housing U 1 with pre-shut-off and pipework protection
• Rp 1/2" connection
• Two adjustable foot supports for a floor structure of 0-200 mm
• Two M 8 retaining bolts
• Infinitely adjustable mounting rail
• Infinitely height-adjustable waste water connection
• Connection elbow including protective plugs
• Fixing material for urinal
• Inlet set 1/2"

To be ordered separately:

• Manual urinal actuation or electronic
• Fastening for pre-wall, corner or wooden post mounting
