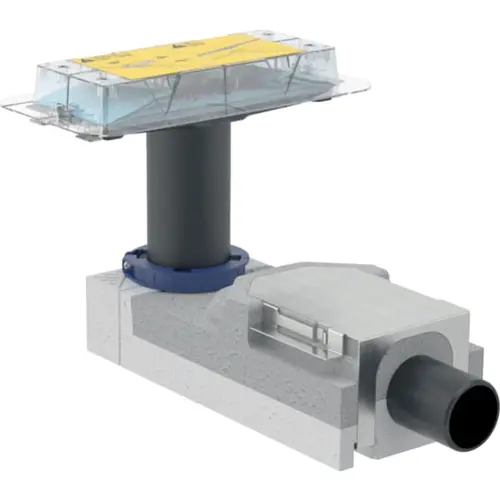

Intended use

• For installation inside buildings
• For drainage of Geberit shower channels of the CleanLine series
• For floor constructions 90 - 200mm
• For composite waterproofing
• To accommodate the waste water of a single shower head
• For installation with very low floor construction

Properties

• Deviating from requirements of EN 1253, the siphoning height is only 30mm
• Minimum screed height at inlet 90mm
• Pre-assembled sealing fleece, circumferential 10cm, for connection of sealing systems
• Base body made of EPS for sound decoupling and odor trap absorption

Technical data

• drainage capacity: 0,8 l/s
• odor trap height: 50mm

Scope of delivery

• Building protection ceiling with drain edge
• Thin bed attachment
• PE-HD odor trap
• Fastening material

To be ordered additionally (see recommendation)

• Shower channel of the CleanLine series

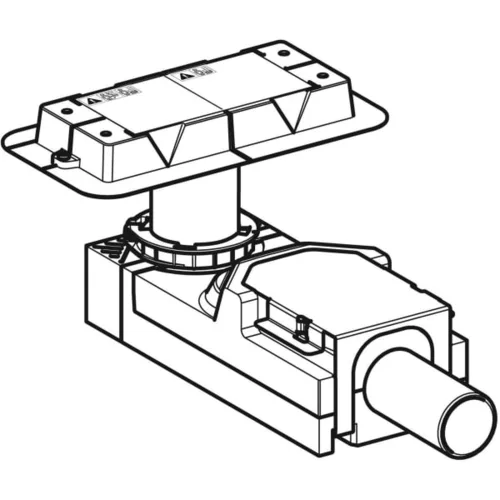

Dimensions (see drawing for more pictures)

• W: 13cm / H: 9cm / H1: 9 - 20cm / h: 4,2cm / L: 30cm / L1: 35,8cm / d: 50mm
